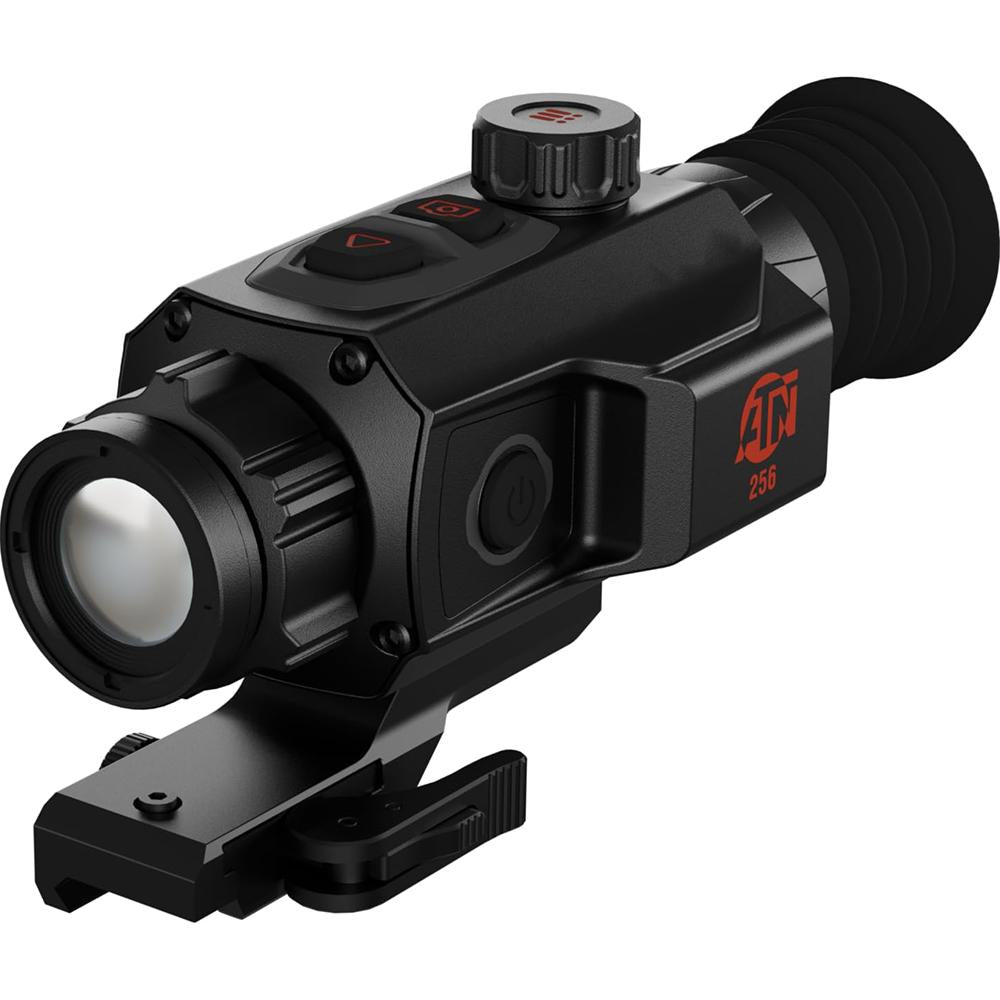

ATN THOR-6 Mini Compact Thermal 2-16x, 256x192 Rifle Scope

ATN ThOR 6 Mini 256x192 2-16x Compact Thermal Imaging Scope

The ATN ThOR 6 Mini 2-16x Thermal Riflescope is a compact, next-generation thermal optic designed for mobility without sacrificing performance. Built around ATN's 6th Generation thermal engine and a 256x192 sensor, it delivers clear heat detection and sharp imaging in total darkness, fog, or harsh conditions. With advanced features like AI-enhanced image processing, video recording, and wireless connectivity, this lightweight scope provides a versatile, field-ready solution for hunting and tactical applications.

Product Features:

256x192 Thermal Sensor: The 12µm VOx sensor with ≤20 mK sensitivity detects subtle heat signatures and delivers clear thermal imaging in challenging environments.

2-16x Magnification: The wide magnification range supports close- to mid-range targeting, allowing users to adapt to different hunting scenarios.

6th Generation Thermal Engine: The advanced thermal core improves image clarity, detection capability, and overall performance in low-visibility conditions.

SharpIR AI Image Enhancement: ATN's proprietary SharpIR technology enhances contrast and sharpness in real time, improving target identification and detail.

800x600 OLED Display: The high-resolution OLED display provides clear, high-contrast visuals for comfortable viewing and precise targeting.

Video Recording & Streaming: The scope allows users to record video and share footage via built-in connectivity, capturing and reviewing key moments in the field.

Wi-Fi Connectivity: Built-in Wi-Fi enables streaming, file sharing, and remote control through compatible mobile devices.

Recoil Activated Video (RAV): The system automatically records footage before and after each shot, ensuring important moments are captured.

Multiple Color Palettes: Various viewing modes allow users to optimize image contrast based on terrain and environmental conditions.

Hot Point Tracking: This feature highlights the warmest object in the field of view for faster target acquisition.

Picture-in-Picture Mode: The display provides a magnified aiming window while maintaining a full field of view for situational awareness.

Compact Magnesium Alloy Design: The lightweight yet rugged housing enhances durability while maintaining portability for field use.

USB-C Interface: A universal USB Type-C port supports fast charging, data transfer, and accessory connectivity.

Long Battery Life: The efficient power system delivers approximately 8 hours of continuous operation for extended use.

Product Specifications:

SKU: TIWST6M215

Detector Type: 12μm VOx Uncooled Focal Plane Array

Sensor Resolution: 256x192

Refresh Rate: 50 Hz

Thermal Sensitivity (NETD): ≤20mK

SharpIR: Yes

Non-Uniformity Correction (NUC): Auto / Semi Auto / Manual

Lens System: 15 mm (Ge); F/1.0

Field of View (HxV): 11.7° × 8.8°

Focus Mechanism: Manual, Front Lens Adjustment

Magnification: 2-16x

Digital Zoom: 1x, 2x, 4x, 8x

Zoom Type: Step & Smooth Zoom

Detection Range: 1200 m

Display Resolution: 0.32" OLED, 800x600 Resolution

Picture-in-Picture (PIP): Yes

Reticle Types: 10 Styles

Zeroing Freeze: Yes

Color Palettes: White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia

Eye Relief: 50 mm

Diopter Range: -5 to +5 D

Battery Type: 18650 rechargeable (qty 2 included)

Battery Life: ~8 hrs (4 hr per battery)

Supports External Power Supply: Yes, USB Type-C (5 VDC / 2A)

Internal Storage Capacity: 64 GB

Video / Audio Recording: Yes

Geomagnetic + Gyroscope: Yes

Hot Point Tracking: Yes

Reticle Transparency Control: Yes

Internal Gallery: Yes

Recoil Activated Video (RAV): Yes

Standby / Sleep Mode: Yes

Startup Time: <7 seconds (instant from Standby)

Media Output: USB Type-C

Built-in Wi-Fi (Hotspot): Yes

App (Apple Store / Google Play): Yes (ATN Connect 6 – iOS & Android)

Material: Magnesium Alloy

Mounting: Picatinny Rail

Weight: 500 g / 1.10 lbs

Dimensions (L x W x H): 180x65x65 mm (7.09x2.56x2.56 in)

Max Recoil Rating: 6000 Joules / 1000g acceleration over 0.4 ms

Operating Temperature: -30°C to +55°C (-22°F to 131°F)

Waterproof / IP Rating: IP67

Warranty: 5 Year
