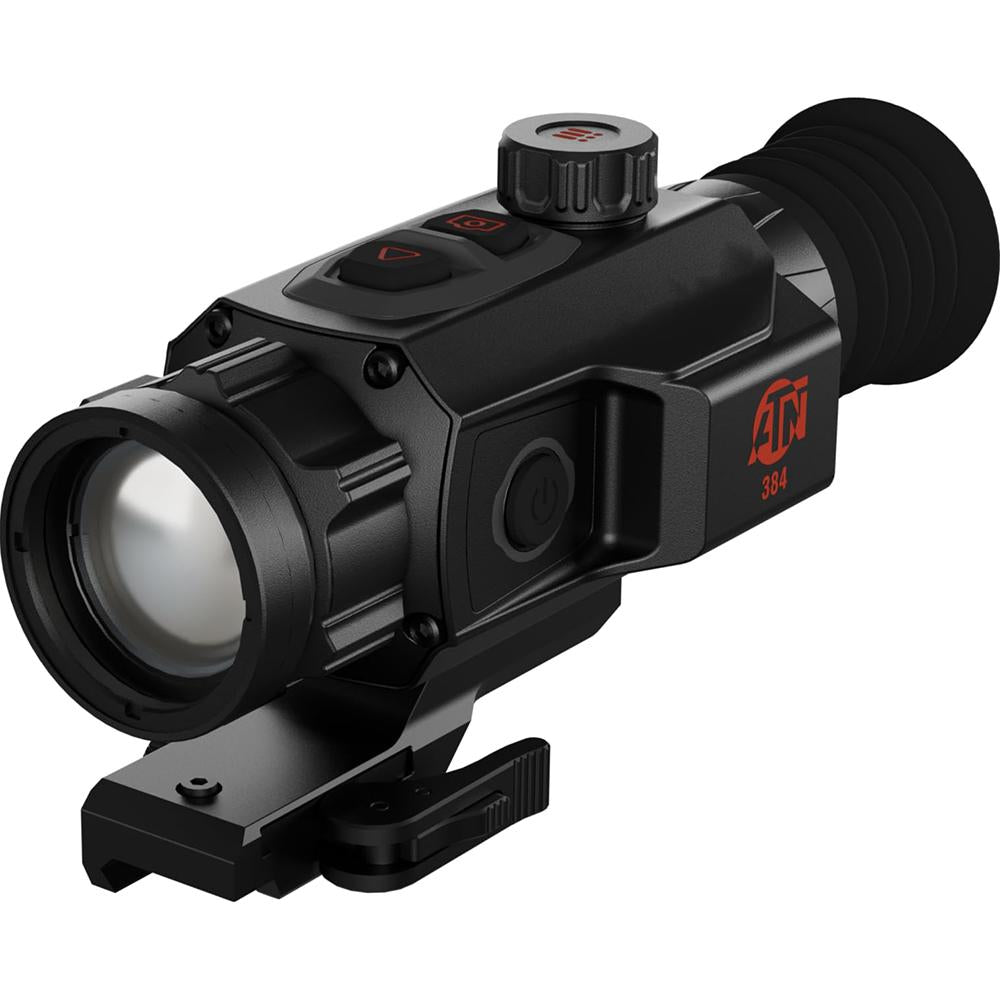

ATN THOR-6 Mini Compact Thermal 3.5-28x, 384x288 Rifle Scope

ATN ThOR 6 Mini 384x288 3.5-28x Compact Thermal Imaging Scope

The ATN ThOR 6 Mini 384 3.5-28x Thermal Riflescope is a compact, high-performance optic built around ATN's 6th Generation thermal platform. Featuring a 384x288 sensor and advanced image processing, it delivers sharp thermal imaging and long-range detection in complete darkness, fog, or dense terrain. Designed for mobility and durability, it combines powerful magnification, AI-enhanced clarity, and smart recording features in a lightweight, field-ready design.

Product Features:

384x288 Thermal Sensor: The 12µm VOx sensor with ≤18 mK sensitivity detects subtle heat signatures and provides sharp, high-contrast thermal imaging.

3.5-28× Magnification: The wide magnification range supports mid- to long-range targeting while maintaining clarity across varying distances.

6th Generation Thermal Engine: ATN's advanced thermal core improves image processing, detection capability, and overall performance in challenging environments.

SharpIR AI Image Enhancement: Proprietary SharpIR technology enhances edge definition and contrast in real time for improved target identification.

1920x1080 OLED Display: The high-resolution OLED display delivers sharp visuals, deep contrast, and reduced eye strain for extended viewing.

Detection Range up to ~2710 m: The system provides extended detection capability, allowing users to identify targets at long distances.

Video & Audio Recording with RAV: Built-in recording captures video and audio, while recoil-activated video automatically records key moments before and after each shot.

Wi-Fi Connectivity: Integrated Wi-Fi allows streaming, file sharing, and remote control via compatible mobile devices.

Picture-in-Picture Mode: This feature provides a magnified aiming window while maintaining full situational awareness of the surrounding field of view.

Hot Spot Tracking: The scope highlights the warmest object in view, enabling faster target acquisition in dynamic environments.

Multiple Color Palettes: Several viewing modes allow users to optimize contrast and visibility based on terrain and environmental conditions.

Compact Magnesium Alloy Housing: The lightweight yet rugged design enhances portability while maintaining durability in demanding field conditions.

USB-C Interface: A universal USB Type-C port supports fast charging, data transfer, and accessory connectivity.

Long Battery Life: The efficient power system provides approximately 7 hours of continuous operation for extended use in the field.

Product Specifications:

SKU: TIWST6M335

Detector Type: 12μm VOx Uncooled Focal Plane Array

Sensor Resolution: 384x288

Refresh Rate: 50 Hz

Thermal Sensitivity (NETD): ≤18mK

SharpIR: Yes

Non-Uniformity Correction (NUC): Auto / Semi Auto / Manual

Lens System: 35 mm (Ge); F/1.0

Field of View (HxV): 7.5° x 5.7°

Focus Mechanism: Manual, Front Lens Adjustment

Magnification: 3.5-28x

Digital Zoom: 1x, 2x, 4x, 8x

Zoom Type: Step & Smooth Zoom

Detection Range: 2710 m

Display Resolution: 0.49" OLED, 1920x1080 Resolution

Picture-in-Picture (PIP): Yes

Reticle Types: 10 Styles

Zeroing Freeze: Yes

Color Palettes: White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia

Eye Relief: 50 mm

Diopter Range: -5 to +5 D

Battery Type: 18650 rechargeable (qty 2 included)

Battery Life: ~8 hrs (4 hr per battery)

Supports External Power Supply: Yes, USB Type-C (5 VDC / 2A)

Internal Storage Capacity: 64 GB

Video / Audio Recording: Yes

Geomagnetic + Gyroscope: Yes

Hot Point Tracking: Yes

Reticle Transparency Control: Yes

Internal Gallery: Yes

Recoil Activated Video (RAV): Yes

Standby / Sleep Mode: Yes

Startup Time: <7 seconds (instant from Standby)

Media Output: USB Type-C

Built-in Wi-Fi (Hotspot): Yes

App (Apple Store / Google Play): Yes (ATN Connect 6 – iOS & Android)

Material: Magnesium Alloy

Mounting: Picatinny Rail

Weight: 540 g / 1.19 lbs

Dimensions (L x W x H): 190x65x65 mm (7.48x2.56x2.56 in)

Max Recoil Rating: 6000 Joules / 1000g acceleration over 0.4 ms

Operating Temperature: -30°C to +55°C (-22°F to 131°F)

Waterproof / IP Rating: IP67

Warranty: 5 Year
