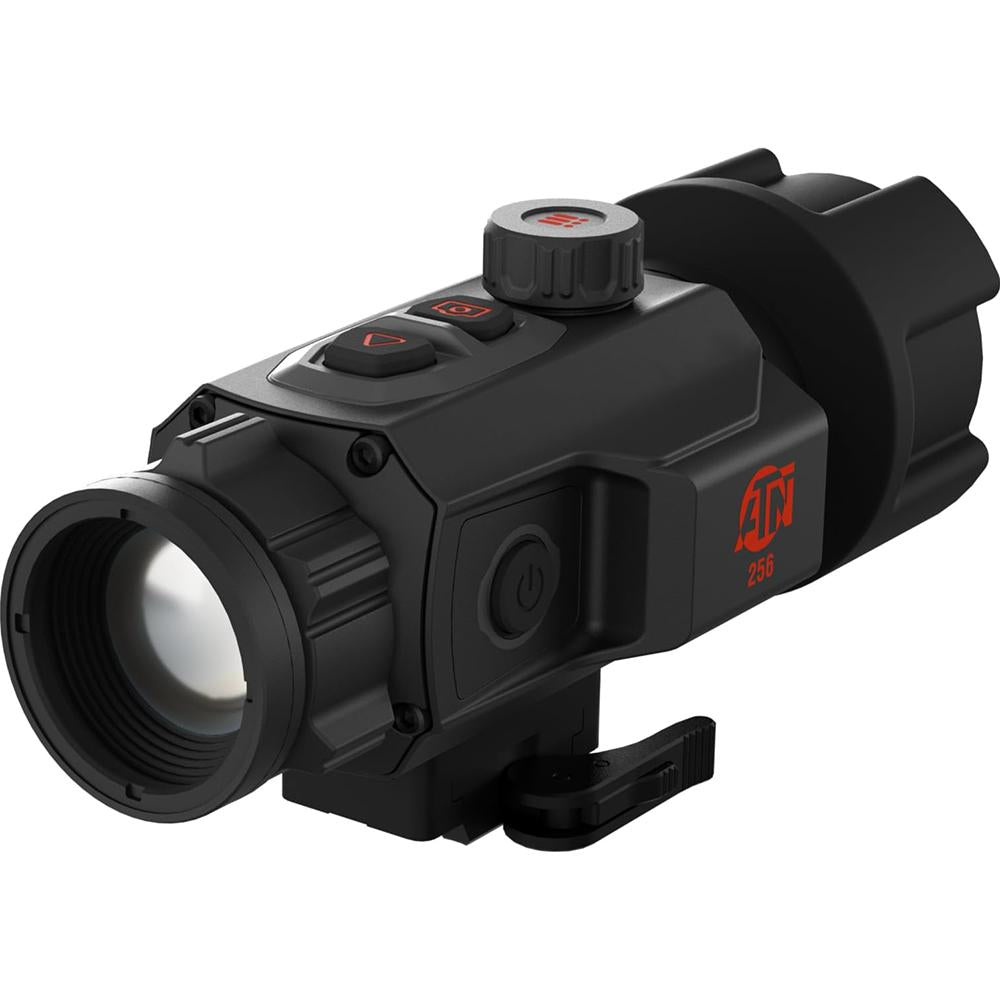

ATN TICO-6 Thermal Clip-On, 256x192 Scope

ATN TICO 6 256x192 Thermal Imaging Clip-on System

The ATN TICO 6 256 Thermal Clip-On is a versatile, next-generation thermal solution designed to instantly convert a standard daytime scope into a high-performance thermal optic. Built around ATN's 6th Generation thermal engine and a 256x192 sensor, it delivers clear heat detection and enhanced target recognition in total darkness, fog, or dense terrain. With SharpIR AI image enhancement, onboard recording, and wireless connectivity, the TICO 6 combines advanced technology with rugged, field-ready performance for hunting, surveillance, and tactical use.

Product Features:

256x192 Thermal Sensor: The 12µm sensor with ≤20 mK sensitivity detects subtle heat signatures and provides clear thermal imaging in low-visibility environments.

6th Generation Thermal Engine: ATN's latest thermal core improves image clarity, sensitivity, and overall detection performance in challenging conditions.

SharpIR AI Image Enhancement: The integrated AI technology enhances contrast and sharpness in real time, improving edge definition and target separation.

Clip-On & Monocular Functionality: The device mounts in front of a daytime scope for thermal use and can convert to a handheld monocular with an optional adapter.

800x600 OLED Display: The high-resolution display provides crisp visuals with strong contrast for improved viewing and targeting accuracy.

Detection Range up to ~1500 m: The system enables long-distance detection, helping users identify targets at extended ranges.

Video & Audio Recording with RAV: Built-in recording captures video and audio, while recoil-activated video automatically records key moments before and after each shot.

64GB Internal Storage: Onboard memory allows users to store photos and videos directly on the device for later review.

Wi-Fi Hotspot Connectivity: Built-in Wi-Fi enables streaming, file sharing, and remote control via the ATN Connect app.

Hot Point Tracking: This feature highlights the warmest object in the field of view for faster target acquisition.

Multiple Color Palettes: Various viewing modes allow users to optimize contrast and visibility based on environmental conditions.

Quick-Detach Picatinny Mount: The included mount allows fast attachment and removal while maintaining alignment and accuracy.

Rugged Magnesium Alloy Housing: The durable, weatherproof construction is designed for reliable use in harsh outdoor environments.

Up to ~8 Hours Battery Life: The efficient power system provides extended operation using a rechargeable 18650 battery.

Product Specifications:

SKU: TICO6225A

Detector Type: 12μm VOx Uncooled Focal Plane Array

Sensor Resolution: 256x192

Refresh Rate: 50 Hz

Thermal Sensitivity (NETD): ≤20mK

SharpIR: Yes

Non-Uniformity Correction (NUC): Auto / Semi Auto / Manual

Lens System: 25 mm (Ge); F/1.0

Field of View (HxV): 7.0° x 5.3°

Focus Mechanism: Manual, Front Lens Adjustment

Optical Magnification: 1x

Detection Range: 1500 m

Optimal Day Scope Magnification: 1-8x

Display Resolution: 0.32" OLED, 800x600 Resolution

Color Palettes: White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia

Internal Storage Capacity: 64 GB

Video / Audio Recording: Yes

Monocular Mode: Yes

Hot Point Tracking: Yes

Geomagnetic + Gyroscope: Yes

Recoil Activated Video (RAV): Yes

Internal Gallery: Yes

Standby / Sleep Mode: Yes

Startup Time: <7 seconds (instant from Standby)

Media Output: USB Type-C

Built-in Wi-Fi (Hotspot): Yes

Wireless Remote Control: Yes (Included)

App (Apple Store / Google Play): Yes (ATN Connect 6 - iOS & Android)

Supports External Power Supply: Yes, USB Type-C (5 VDC / 2A)

Battery Type: 18650 rechargeable (qty 2 included)

Battery Life: ~8 hrs (4 hr per battery)

Material: Magnesium Alloy

Mounting: Quick Detach (included) / Scope Mounting System (add-on)

Weight: 511 g / 1.12 lbs

Dimensions (L x W x H): 159x85x74 mm (6.25x3.34x2.91 in)

Max Recoil Rating: 6000 Joules / 1000g acceleration over 0.4 ms

Working Temperature: -30°C to +55°C (-22°F to 131°F)

Waterproof / IP Rating: IP67

Warranty: 5 years
