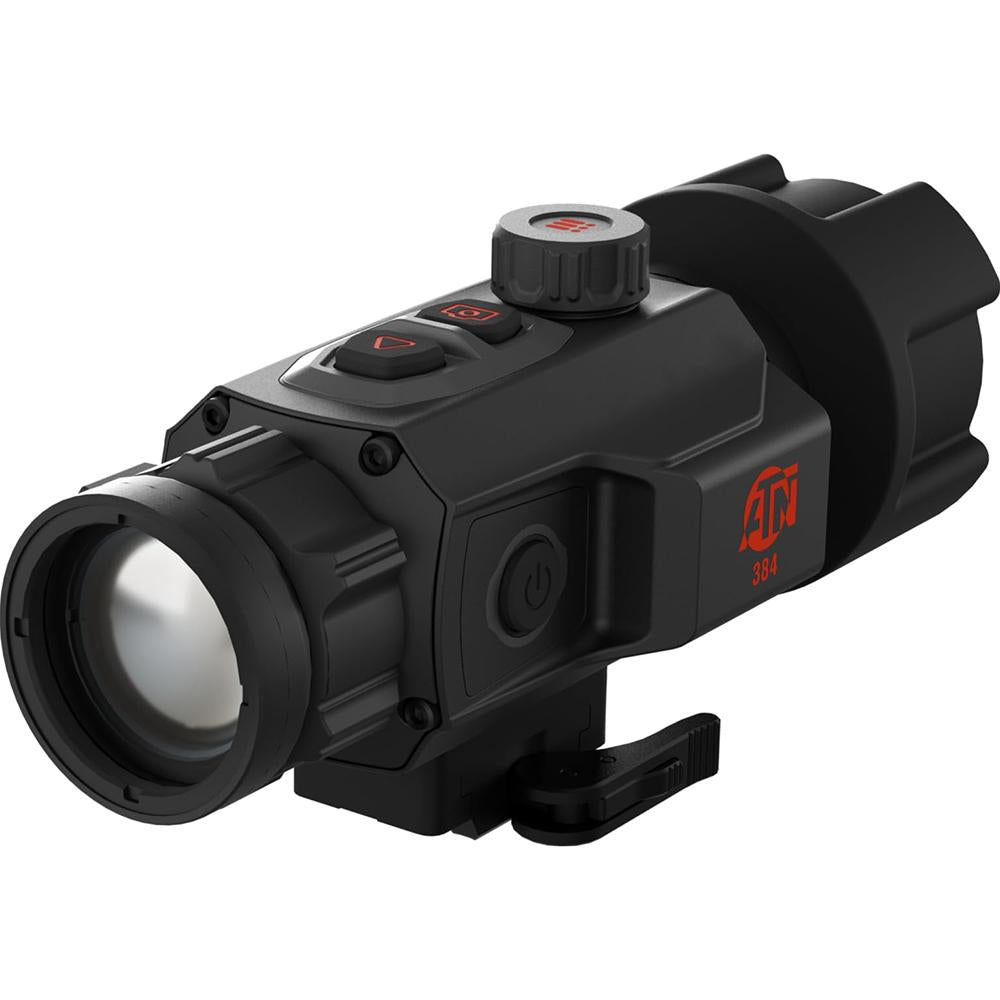

ATN TICO-6 Thermal Clip-On 384x288 Scope

ATN TICO 6 384x288 Thermal Imaging Clip-on System

The ATN TICO 6 384 Thermal Clip-On is a versatile, high-performance thermal solution designed to instantly convert your daytime scope into a powerful thermal optic without altering zero or handling. Built around ATN's advanced 6th Generation thermal engine and a 384x288 sensor, it delivers sharp, detailed imaging and long-range detection in total darkness, fog, or dense terrain. With multi-role capability, AI-enhanced image processing, and integrated recording and connectivity features, the TICO 6 is engineered for hunters, security professionals, and tactical users who demand flexibility and precision in the field.

Product Features:

384x288 Thermal Sensor: The 12µm VOx sensor with ≤18 mK sensitivity provides high-resolution thermal imaging and improved heat separation for precise target identification.

6th Generation Thermal Engine: ATN's latest thermal core enhances clarity, sensitivity, and detection performance, delivering sharp imaging even in challenging environments.

SharpIR AI Image Enhancement: Proprietary AI processing improves contrast and edge definition in real time, allowing clearer target recognition and reduced visual noise.

Clip-On & Monocular Functionality: The device mounts in front of a daytime scope for thermal use and can be converted into a handheld monocular with an optional eyepiece adapter.

1920x1080 OLED Display: The high-resolution OLED display provides vivid detail, strong contrast, and smooth image rendering for comfortable viewing.

Detection Range up to ~2710 m: The system enables long-distance detection, allowing users to identify heat signatures at extended ranges.

50 Hz Refresh Rate: The fast refresh rate ensures smooth imaging and accurate tracking of moving targets in dynamic environments.

Video & Audio Recording with RAV: Built-in recording captures video and audio, while recoil-activated video automatically records key moments before and after each shot.

64GB Internal Storage: Integrated storage allows users to save and review photos and videos directly on the device without external media.

Wi-Fi Connectivity: Built-in Wi-Fi enables streaming, file sharing, and remote control through compatible mobile devices and apps.

Hot Spot Tracking: The system highlights the warmest object in the field of view for faster and more efficient target acquisition.

Multiple Color Palettes: Various viewing modes allow users to optimize image contrast based on terrain and environmental conditions.

Quick-Detach Mounting System: The included quick-detach mount allows fast attachment and removal while maintaining alignment with the host optic.

Rugged Magnesium Alloy Construction: The durable, weather-resistant housing is built for reliable performance in harsh outdoor and tactical environments.

Long Battery Life: The system is designed for extended field use, offering up to approximately 8 hours of operation on a rechargeable battery.

Product Specifications:

SKU: TICO6335A

Detector Type: 12μm VOx Uncooled Focal Plane Array

Sensor Resolution: 384x288

Refresh Rate: 50 Hz

Thermal Sensitivity (NETD): ≤18mK

SharpIR: Yes

Non-Uniformity Correction (NUC): Auto / Semi Auto / Manual

Lens System: 35 mm (Ge); F/1.0

Field of View (HxV): 7.5° x 5.7°

Focus Mechanism: Manual, Front Lens Adjustment

Optical Magnification: 1x

Detection Range: 2710 m

Optimal Day Scope Magnification: 1-12x

Display Resolution: 0.49" OLED, 1920x1080 Resolution

Color Palettes: White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia

Internal Storage Capacity: 64 GB

Video / Audio Recording: Yes

Monocular Mode: Yes

Hot Point Tracking: Yes

Geomagnetic + Gyroscope: Yes

Recoil Activated Video (RAV): Yes

Internal Gallery: Yes

Standby / Sleep Mode: Yes

Startup Time: <7 seconds (instant from Standby)

Media Output: USB Type-C

Built-in Wi-Fi (Hotspot): Yes

Wireless Remote Control: Yes (Included)

App (Apple Store / Google Play): Yes (ATN Connect 6 - iOS & Android)

Supports External Power Supply: Yes, USB Type-C (5 VDC / 2A)

Battery Type: 18650 rechargeable (qty 2 included)

Battery Life: ~8 hrs (4 hr per battery)

Material: Magnesium Alloy

Mounting: Quick Detach (included) / Scope Mounting System (add-on)

Weight: 524 g / 1.15 lbs

Dimensions (L x W x H): 163x85x74 mm (6.41x3.34x2.91 in)

Max Recoil Rating: 6000 Joules / 1000g acceleration over 0.4 ms

Working Temperature: -30°C to +55°C (-22°F to 131°F)

Waterproof / IP Rating: IP67

Warranty: 5 years
