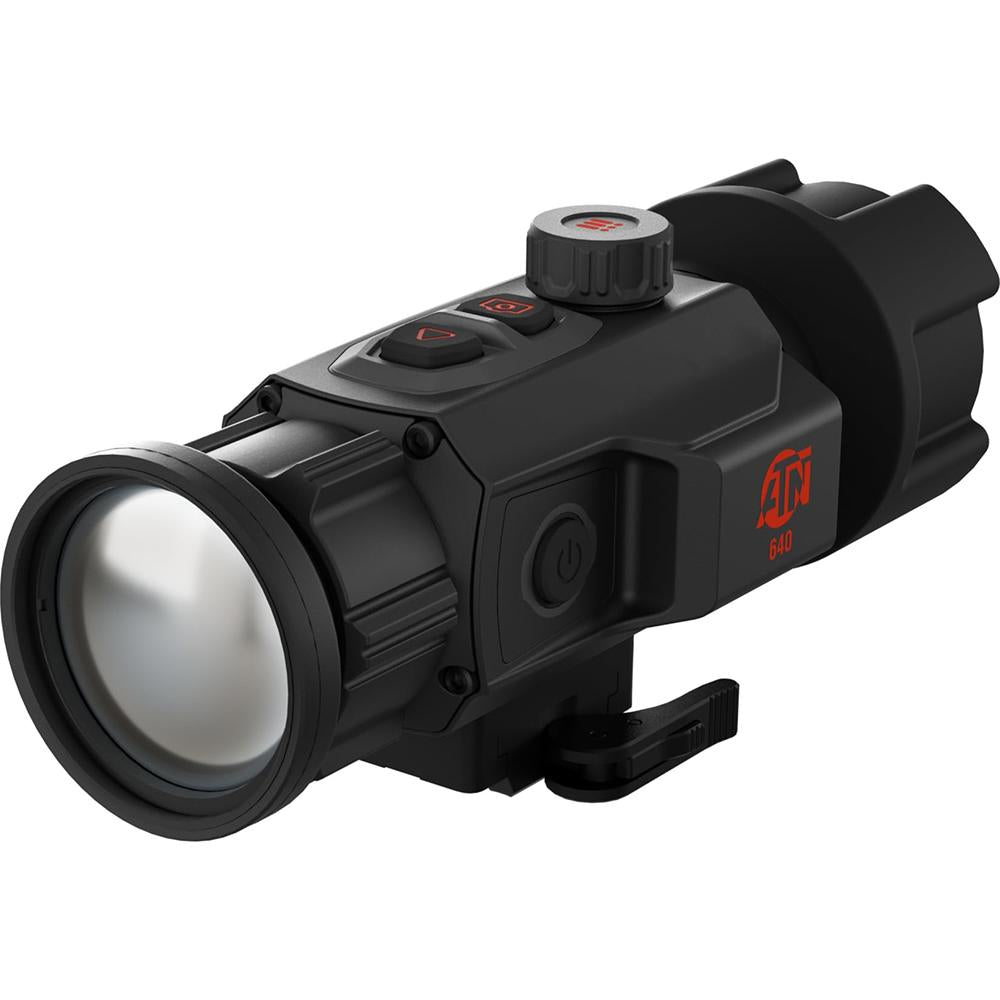

ATN TICO-6 Thermal Clip-On, 640x512 Scope

ATN TICO 6 640x512 Thermal Imaging Clip-on System

The ATN TICO 6 640 Thermal Clip-On is a high-performance, multi-role thermal system designed to instantly transform your daytime optic into a powerful thermal solution without changing your setup or zero. Built around ATN's 6th Generation thermal engine and a 640x512 sensor, it delivers exceptional clarity, sensitivity, and long-range detection in complete darkness, fog, or dense terrain. With SharpIR AI enhancement, onboard recording, and wireless connectivity, the TICO 6 is engineered for precision, flexibility, and reliability in demanding field conditions.

Product Features:

640x512 Thermal Sensor: The 12µm VOx sensor with ≤18 mK sensitivity delivers high-resolution thermal imaging with excellent heat separation for accurate target identification.

6th Generation Thermal Engine: ATN's latest thermal core enhances image clarity, detection capability, and overall performance in low-visibility environments.

SharpIR AI Image Enhancement: Proprietary AI processing improves contrast and sharpness in real time, helping users distinguish targets more clearly from background heat.

Clip-On & Monocular Functionality: The device mounts in front of a daytime scope without affecting zero and can convert to a handheld monocular with an optional adapter.

1920x1080 OLED Display: The high-resolution OLED display provides vivid detail, strong contrast, and smooth image rendering for enhanced viewing comfort.

Detection Range up to ~3500 m: The system enables long-distance detection, allowing users to identify heat signatures at extended ranges.

50 Hz Refresh Rate: The fast refresh rate ensures smooth imaging and accurate tracking of moving targets.

Video & Audio Recording with RAV: Built-in recording captures video and audio, while recoil-activated video automatically records key moments before and after each shot.

64GB Internal Storage: Integrated memory allows users to store photos and videos directly on the device without additional media.

Wi-Fi Hotspot Connectivity: Built-in Wi-Fi enables streaming, file sharing, and remote control through the ATN Connect app.

Quick-Detach Mount System: The included Picatinny mount allows fast attachment and removal while maintaining alignment and zero retention.

Multiple Color Palettes & Hot Spot Tracking: Various viewing modes and hot spot tracking improve visibility and speed up target acquisition in different environments.

Rugged Magnesium Alloy Housing: The durable, weather-resistant construction is built for reliable performance in harsh outdoor conditions.

Up to ~7 Hours Battery Life: The efficient power system uses a rechargeable 18650 battery to provide extended operation in the field.

Product Specifications:

SKU: TICO6650A

Detector Type: 12μm VOx Uncooled Focal Plane Array

Sensor Resolution: 640x512

Refresh Rate: 50 Hz

Thermal Sensitivity (NETD): ≤18mK

SharpIR: Yes

Non-Uniformity Correction (NUC): Auto / Semi Auto / Manual

Lens System: 50 mm (Ge); F/1.0

Field of View (HxV): 8.8° x 7.0°

Focus Mechanism: Manual, Front Lens Adjustment

Optical Magnification: 1x

Detection Range: 3500 m

Optimal Day Scope Magnification: 1-15x

Display Resolution: 0.49" OLED, 1920x1080 Resolution

Color Palettes: White Hot, Black Hot, Iron Red, Alarm, Green Hot, Sepia

Internal Storage Capacity: 64 GB

Video / Audio Recording: Yes

Monocular Mode: Yes

Hot Point Tracking: Yes

Geomagnetic + Gyroscope: Yes

Recoil Activated Video (RAV): Yes

Internal Gallery: Yes

Standby / Sleep Mode: Yes

Startup Time: <7 seconds (instant from Standby)

Media Output: USB Type-C

Built-in Wi-Fi (Hotspot): Yes

Wireless Remote Control: Yes (Included)

App (Apple Store / Google Play): Yes (ATN Connect 6 - iOS & Android)

Supports External Power Supply: Yes, USB Type-C (5 VDC / 2A)

Battery Type: 18650 rechargeable (qty 2 included)

Battery Life: ~8 hrs (4 hr per battery)

Material: Magnesium Alloy

Mounting: Quick Detach (included) / Scope Mounting System (add-on)

Weight: 564 g / 1.24 lbs

Dimensions (L x W x H): 175x85x74 mm (6.88x3.34x2.91 in)

Max Recoil Rating: 6000 Joules / 1000g acceleration over 0.4 ms

Working Temperature: -30°C to +55°C (-22°F to 131°F)

Waterproof / IP Rating: IP67

Warranty: 5 years
