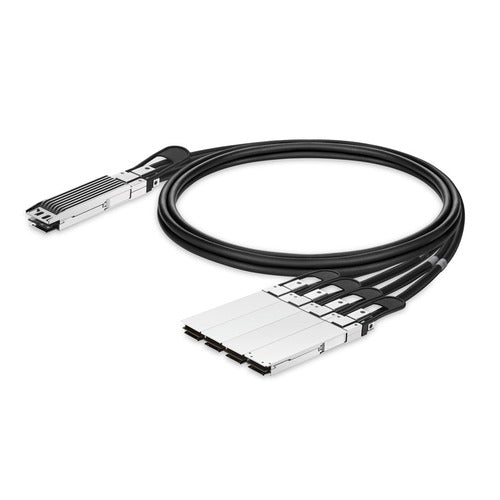

Nvidia MCP7Y50-N002 2 Meters Direct Attach Copper Splitter Cable

Nvidia MCP7Y50-N002 2 Meters Direct Attach Copper Splitter Cable - 6.56 Feet InfiniBand Network Cable for Network Device - First End: OSFP Network, Second End: 4x OSFP Network - 800 Gbps - InfiniBand NDR200 The NVIDIA/Mellanox InfiniBand NDR MCP7Y50-N002 is an 800Gb/s twin-port OSFP to four 200Gb/s twin-port OSFP Direct Attached Copper quad breakout cable. The 8-channel twin-port OSFP end uses a finned top form-factor for use in Quantum-2 switch cages. The four 200G ends support 2-channels of 100G-PAM4 (200G) and use a flat top OSFP for use in ConnectX-7 adapters using riding heat sinks on the connector cage. This cable is compliant with OSFP MSA (Multi-Source Agreement) and IEEE 802.3ck standards. DACs offer the lowest latency, so are widely used in data centers to connect servers and GPU compute systems to the top-of-rack (TOR) switches and link spine-to-super-spine switches inside racks over short cable lengths. DACs are also used to create InfiniBand storage fabrics with hard-disk-drive (HDD) and flash memory subsystems. Featuring a simple design and minimal components, DAC cables offer the lowest-cost, lowest-latency, and near-zero-power connections for high-speed links. They enhance port bandwidth, density, configurability, and reduce power requirements in supercomputers and hyper scale systems. Model Number MCP7Y50-N002 Product Name Nvidia MCP7Y50-N002 2 Meters Direct Attach Copper Splitter Cable Product Type Direct Attach Copper Cable Color Black Connector 1 OSFP Connector 2 4x OSFP Data Transfer Rate 800 Gbps Cable Length 7 Feet Cable Type Passive Twinax Wire Gauge 26 American wire gauge Jacket Material PVC (OFNR) Minimum Bend Radius 71 Millimeter Features Passive cable, copper conductors, InfiniBand NDR Link support, up to 800 Gbps DOM Support Yes Application Type Passive Copper Modulation Format PAM4 Power Consumption 0.1 Watts Compliance Standards All MSA and IEE Standards & Protocols Environmental Standards CE, FCC, RoHS, REACH, Class 1 laser. TAA & UL Protocols OSFP MSA, IEEE 802.3ck, CMIS v4.0
