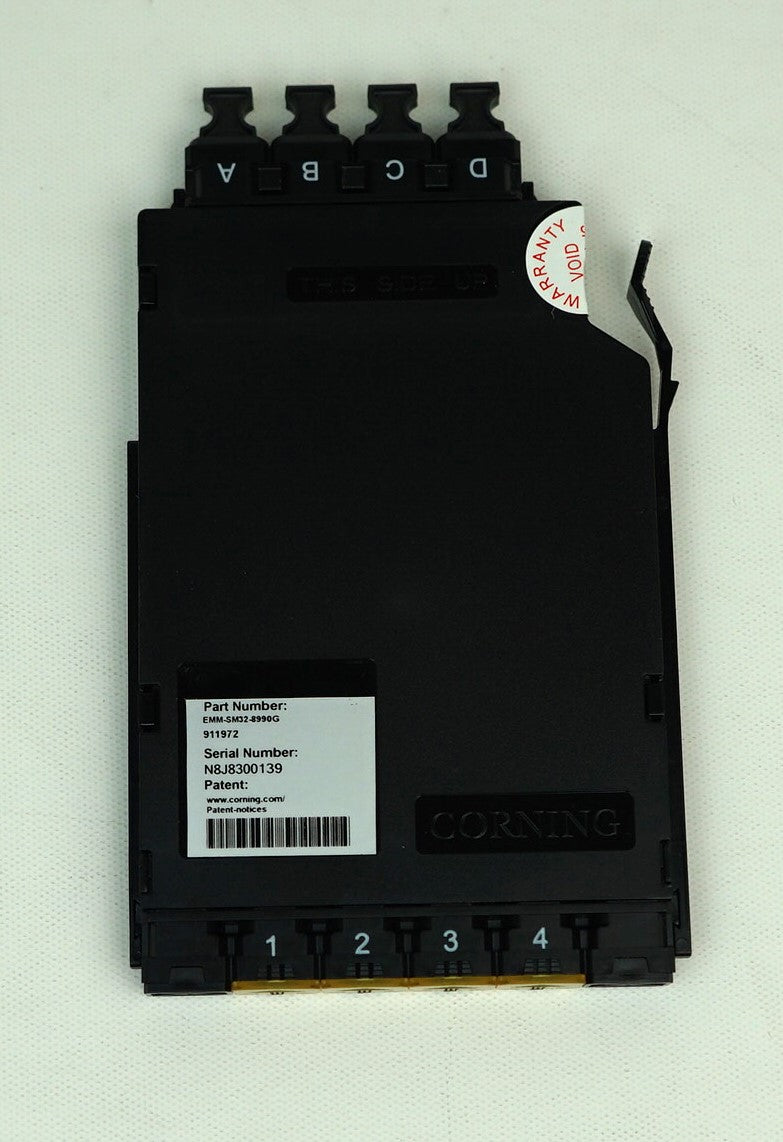

Corning EMM-SM32-8990G EDGE 4x4 Mesh Module

Corning EDGE 4x4 Mesh Module - 32-Fiber - Shuttered MTP (pinned) to MTP (Non-pinned) - Single-mode (OS2) - Black The multiclassification mesh solution addresses the complexities associated with deploying secure communications cabling to the workstation. It utilizes the innovative mesh module to consolidate multiple disparate security enclave cables into one cable which can be run to a workstation while maintaining network and classification separation. The 32-fiber mesh module takes 2 fibers from four specified network classification input trunk cables and transitions them to one output trunk cable. This output trunk cable the distributes the four specified networks to end users. Model Number EMM-SM32-8990G Product Name Corning EMM-SM32-8990G EDGE 4x4 Mesh Module Product Type Fiber Mesh Module Fiber Count 32 Fiber Category Single-mode (OS2) Adapter Type Back MTP (Non-pinned) Adapter Type Front Shuttered MTP (pinned) Adapter Color Black Housing Type Panels and Modules Panel or Module Type EDGE Number of Adapters per Panel 4 Polarity Universal, TIA-568 Type-B Module Insertion Loss, Max 1dB Wavelengths 1310 nm / 1550 nm Height 1181mm (46.5in) Width 115mm (4.53in) Depth 124mm (4.88in)
