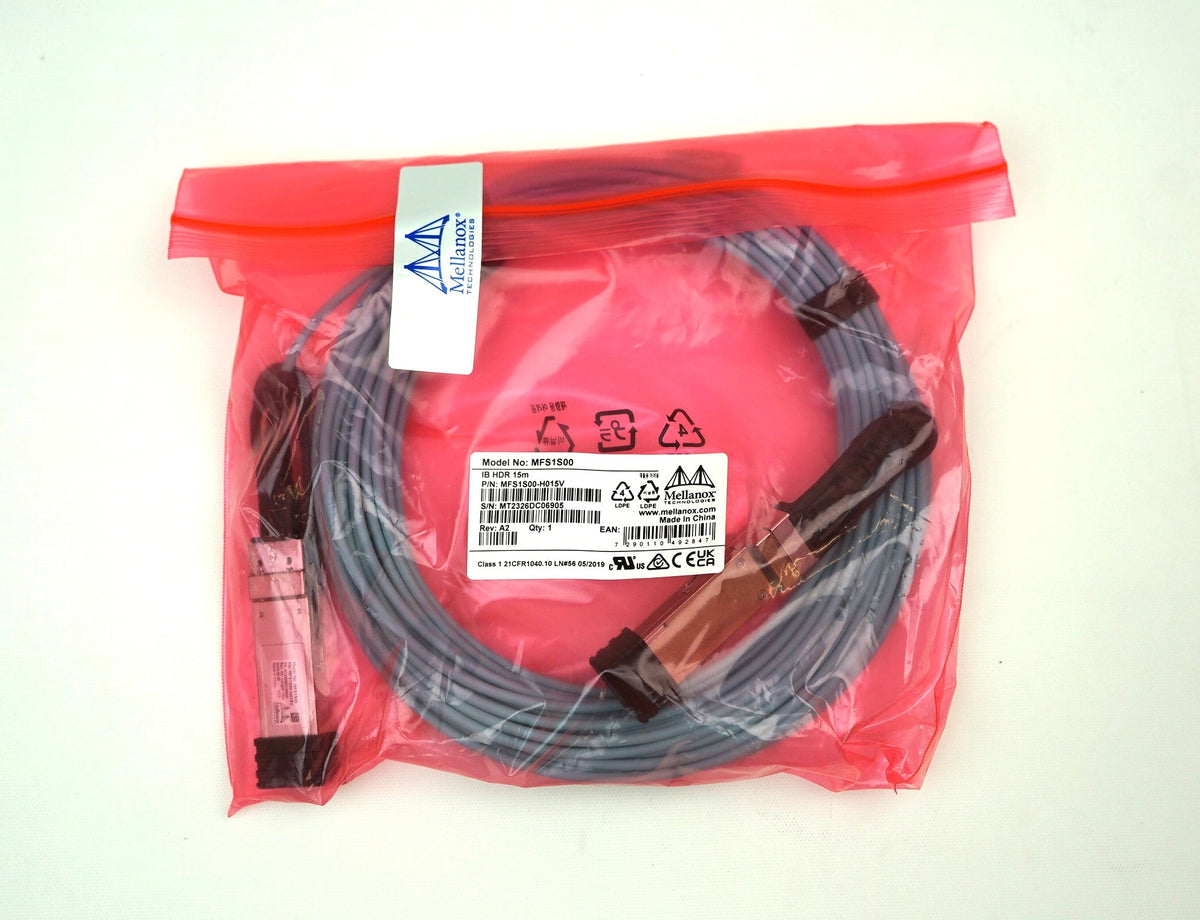

Mellanox MFS1S00-H015V 49.2-feet (15m) 200GBase Active Optical Cable

Mellanox MFS1S00-H015V 49.2-feet (15m) 200GBase Active Optical Cable - Aqua - QSFP56 to QSFP56 - InfiniBand (IB) HDR (High Data Rate) The MFS1S00 is a QSFP56 VCSEL-based (Vertical Cavity Surface-Emitting Laser) active optical cable (AOC) designed for use in 200Gb/s InfiniBand (IB) HDR (High Data Rate) systems. The MFS1S00 AOC offers high port density and configurability, and a much longer reach than passive copper cables in the data centers. Since the AOC is hot pluggable, it is easy to install and replace. The MFS1S00 has a standard SFF-8665 compliant QSFP56 port on the electrical side towards the host system. It contains four multi-mode fibers (MMF) optic transceivers per end, each operating at data rates of up to 50Gb/s. The MFS1S00 offers selectable retiming per lane for both its optical transmitters and receivers up to 50Gb/s rates. Model Number MFS1S00-H015V Product Name Mellanox MFS1S00-H015V 49.2-feet (15m) 200GBase Active Optical Cable Product Type Network Cable Color Aqua Cable Length 49.2 Feet Speed 200GBase Wavelength 850nm Media Multi-mode Fibers DOM Support Yes Application Type Active Fibre Jacket Material LSZH (OFNP) Transceiver Type AOC Form Factor QSFP56 to QSFP56 Features Supports InfiniBand (IB) HDR (High Data Rate)
