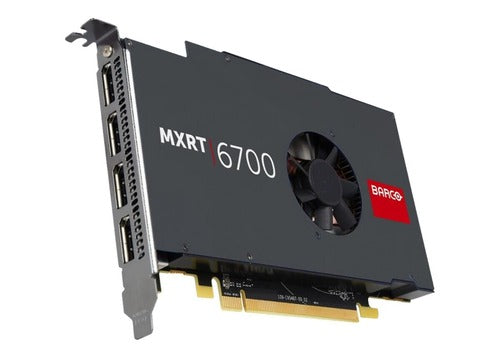

Barco MXRT-6700 K9306047 8 GB Graphics Card

Barco MXRT-6700 K9306047 8 GB Graphics Card - Black - GDDR5 - 256 Bit Bus Width - PCI Express 3.0 x16 - 4 x DisplayPort - AMD Radeon Pro The high-performing Barco MXRT-6700 graphics card is a versatile solution with the power and features necessary to meet most diagnostic imaging needs. With 8GB of graphics memory driving four DisplayPort v1.4 outputs, it is the ideal solution for organizations looking to standardize on one controller across their entire fleet of reading stations. Accelerate your workflow application responsiveness with 1792 stream processors and enable more efficient data transfers between the GPU and CPU with PCIe 3.0 support. Key features include four ports to cover expanded display arrays, increased memory for larger image data loading, EDID emulation for multi-workstation configurations, and Thunderbolt 3 compatibility for eGFX applications. Model Number K9306047 Product Name Barco MXRT-6700 K9306047 8 GB Graphics Card Product Type Graphics Card Color Black Memory Size 8 GB Memory Technology GDDR5 SDRAM Band Width 160 GBps Bus Width 256-bit Output Ports 4 x DisplayPort Stream Processor 1792 Interface Type PCI Express 3.0 x16 API Supported DirectX 12, OpenGL 4.5, Shader Model 5.1, Vulkan 1.1 Video Adapter Feature EDID emulation support Power Consumption Operational 75 watts Operating System Required Microsoft Windows 7 64-bit Edition, Windows 10 64-bit Edition Compliant Standards VCCI, CISPR 24, EN55024, FCC Part 15 B, CSA C22.2, UL 60950-1, RoHS 2011/65/EU, IEC609050-1, BMSI, CISPR 32, EN 55032, CNS
