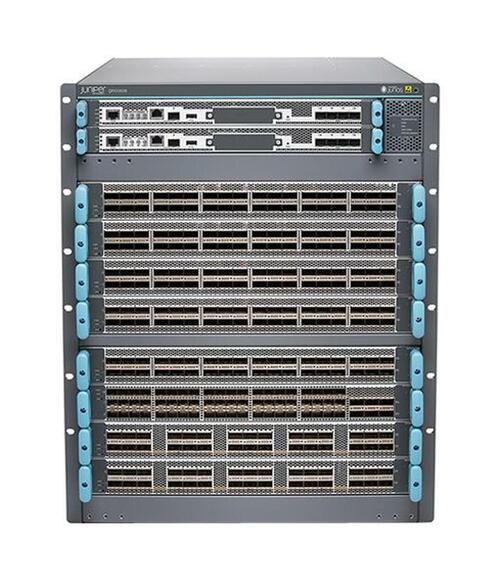

Juniper Networks QFX Series QFX10008-REDUND-T Network Switch

Juniper Networks QFX Series QFX10008-REDUND-T Network Switch - TAA-Compliant Chassis - Rack Mountable - 32 GB RAM - 8 Slots - Hot-Plug - JUNOS - Gray The QFX10000 line of modular data center spine and core Ethernet switches deliver industry-leading scale, flexibility and openness, with a design that enables the seamless transition from 10GbE and 40GbE interface speeds to 100GbE and beyond. These high-performance, forward-looking switches are designed to help cloud and data center operators extract maximum value and intelligence from their network infrastructure well into the future. Model number QFX10008-REDUND-T Product Name Juniper Networks QFX Series QFX10008-REDUND-T Network Switch Product Type Network Switch Color Gray Airflow Direction Front to back airflow Built-in Devices 50 GB SSD Processor Intel Clock Speed 2.5 GHZ Installed RAM 32 GB Performance Bandwidth per slot: 7.2 Tbps, Forwarding performance: 16 Bpps, Throughput: 48 Tbps Capacity ARP entries: 256000, Equal-Cost Multipathing (ECMP) ways: 64, GRE tunnels: 4096, IPv4 forwarding information base (FIB): 256000, IPv4 routes (Multicast): 128000, IPv4 routes: 2000000, IPv6 forwarding information base (FIB): 256000, IPv6 routes (Multicast): 128000, IPv6 routes: 2000000, Queues per port: 8, Virtual interfaces (VLANs): 16000, Virtual output queues: 384000 Subcategory Network hubs and switches Form Factor Rack-mountable Advanced Switching Layer 3 Routing Protocol BGP-4, Bidirectional Forwarding Detection (BFD), Bidirectional PIM, CIDR, ECMP, GRE, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, MSDP, OSPF, OSPFv2, OSPFv3, PIM-DM, PIM-SM, PIM-SSM, RIP-1, RIP-2, RIPng, Static IP routing, VRRP MAC Address Table Size 1M Entries Jumbo Frame Support 9216 bytes Manageable Yes Remote Management Protocol CLI, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2, SNMP 2c, SNMP 3, SSH, Telnet, TFTP Network Features Access Control List (ACL) support, ARP support, BOOTP support, Class of Service (CoS), Data Center Bridging Exchange (DCBX) support, DHCP relay, DHCP server, DiffServ support, DoS attack prevention, EVB Type-Length-Value (TLV), Explicit Congestion Notification (ECN), Fan tray, FCoE support, Front to back airflow, Graceful Route Engine Switchover (GRES), ICMP Router Discovery Protocol (IRDP), IGMP proxy, IGMP snooping, Internet Control Message Protocol (ICMP), IPv4 support, IPv6 support, MACsec support, Management Information Base (MIB), MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, Neighbor Discovery Protocol (NDP), Non-Stop Bridging (NSB), Non-Stop Routing (NSR), NTP time synchronization, Port mirroring, Precision Time Protocol (PTP), Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, RARP support, Redundant hot swappable fans, sFlow, sFlow v5, SNTP support, Spanning Tree Protocol (STP) support, Switch Fabric Element Redundancy, System log, Unicast Reverse Path Forwarding (URPF), Virtual Output Queuing (VOQ), VLAN Spanning Tree Protocol (VSTP), VLAN support, Weighted Random Early Detection (WRED), Weighted Round Robin (WRR) queuing Network Standards IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3z Interfaces 1 x Console management, 1 x Serial management, 1 x SFP management, 1 x USB 2.0, 2 x 1000Base-T RJ-45 management, 4 x SFP+ Expansion Slots 2 (Total) / 0 (Free) x Services and Routing Engine (SRE), 6 (Total) / 0 (Free) x Switching Fabric Unit, 8 (Total) / 8 (Free) x Expansion slot Power Type Internal power supply Hot-Plug Yes Power Redundancy Yes Installed Quantity 6 Max Supported Qty 6 Power Provided 2700 watt Nominal Voltage AC 230 Volts Power Consumption Operational 2003 Watts OS Required JUNOS TAA Compliant Yes Height (Rack Units) 13U Encryption Algorithm AES, MD5 Authentication Method RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+ Compliant Standards BSMI CNS 13438 Class A, CAN/CSA C22.2 No. 60950-1, CAN/CSA-C22.2 No. 60950-1, CISPR 22 Class A, CISPR 24, EN 300386, EN 55022 Class A, EN 60825-1, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN55024, ETSI 300 019, FCC CFR47 Part 15 A, GR-63-CORE, ICES-003 Class A, IEC 60950-1, KN22 Class A, REACH, RoHS 6/6, UL 60950-1, VCCI Class A, WEEE Dimensions W 17.4 x D 32 x H 22.6 Inches Weight 321.87 lbs.
