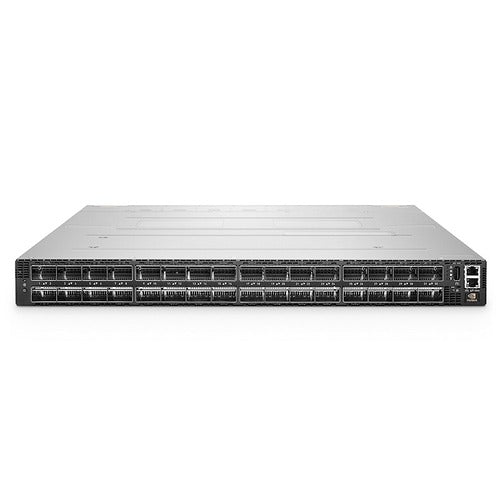

NVIDIA Mellanox Quantum 2 MQM9700-NS2F Network Switch

NVIDIA Mellanox Quantum 2 MQM9700-NS2F Network Switch - Black - Managed - P2C - NDR InfiniBand NVIDIA MQM9700-NS2F Quantum 2 NDR InfiniBand Switch 64-Ports 400Gb/s 32 OSFP Ports Managed P2C Airflow (Forward) | Scaling Out Data Centers with 400G InfiniBand Smart Switches The NVIDIA Quantum-2-based QM9700 and QM9790 switch systems deliver an unprecedented 64 ports of 400Gb/s InfiniBand per port in a 1U standard chassis design. A single switch carries an aggregated bidirectional throughput of 51.2 terabits per second (Tb/s), with a landmark of more than 66.5 billion packets per second (BPPS) capacity. Supporting the latest NVIDIA high-speed interconnect 400Gb/s technology, NVIDIA Quantum-2 brings a high-speed, extremely low-latency and scalable solution that incorporates state-of-the-art technologies such as Remote Direct Memory Access (RDMA), adaptive routing, and NVIDIA Scalable Hierarchical Aggregation and Reduction Protocol Model Number MQM9700-NS2F Product Name NVIDIA Mellanox Quantum 2 MQM9700-NS2F Network Switch Product Type Network Switch Color Black Ports 64x NDR 400G, 32x OSFP Connectors Switch Chip NVIDIA QUANTUM-2 Switching Capacity 25.6 Tbps System Memory Single 8GB Storage M.2 SSD SATA 16GB 2242 FF Voltage 1x/2x, 200-240VAC 50/60Hz 10A Airflow Back-to-Front(P2C) Typical Power Consumption 747 Watts Max. Power Consumption 1703 Watts AC Power Supplies 1+1 Hot-swappable Form Factor Rack-mountable Manageable Yes Compatible Rack Unit 1U Memory Technology DDR4 SDRAM Installed Memory 8 GB Features Adaptive routing, Congestion control, Hot swappable fan, NVIDIA Scalable Hierarchical Aggregation and Reduction Protocol (SHARP), Quality of Service (QoS), RDMA support, Self-healing network, Top-of-Rack (ToR) Remote Management CLI, HTTP, JSON, SNMP Interface 1 x USB 3.0 management, 1 x USB management, 2 x management RJ-45, 32 x 400Gbit LAN OSFP Port Quantity 32 Port Type 400 Gigabit OSFP Hot-Plug Yes Power Supplies Installed 2 Redundant Power Supply Yes Redundant Power Supply Supported 1+1 80 PLUS Certification 80 PLUS Gold Memory Form Factor SO-DIMM 260-pin Compliant Standards CB, cTUVus, CU, FCC, ICES, RCM, RoHS, VCCI ENERGY STAR Certified Yes
