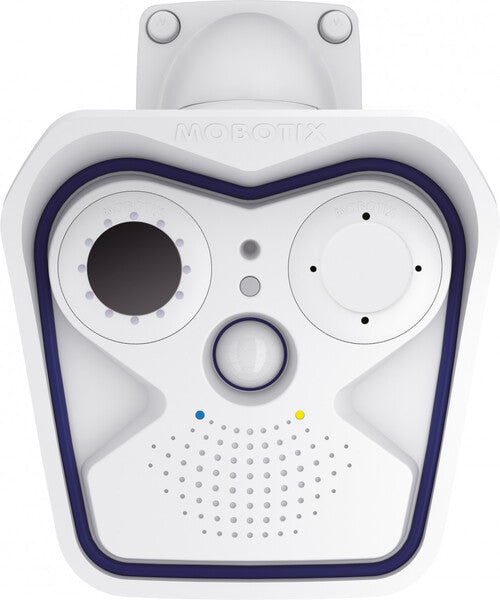

Mobotix MX-M16TB-R119 M16B Thermographic IP Box Security Camera

Mobotix MX-M16TB-R119 M16B Thermographic IP Box Security Camera - 6 Megapixel - 3072 x 2048 - Color - 1 GB - Microphone - Speaker - White The intelligent video system with an integrated high-performance thermal image sensor takes full advantage of the M16B camera design. Thanks to the two directly adjacent lenses, there is also a thermal overlay function with image overlay (thermal and optical) to pinpoint the exact location of hotspots like smoldering fires in a visible image. The MOBOTIX TR cameras feature a calibrated thermal image sensor. Thermal radiation measurements made across the entire image area can be used to trigger an event based on the temperature increasing above or decreasing below an individually set trigger level (camera alarm, network message, activation of a signal output etc.). Model number MX-M16TB-R119 Product Name Mobotix MX-M16TB-R119 M16B Thermographic IP Box Security Camera Product Type Security Camera Color White Camera Type Thermal Network Camera Camera Mechanical Design Fixed Camera Mount Type Ceiling Mount, Wall Mount Color or B/W Color Day and Night Functionality Yes Audio Support Yes Audio Support Features Built-in Microphone, Built-in Speaker Audio Formats G.711, G.722 Digital Video Format H.264, MJPEG, MxPEG Max Video Resolution 6144 x 2048 Digital Video Capture Resolution 1280 x 720, 1280 x 960, 1920 x 1080, 2048 x 1536, 2592 x 1944, 3072 x 2048, 6144 x 2048 Frame Rate (Max) 42 Frames per Second Motion Detection Yes Connectivity Technology Wired Computer Interface USB RAM Capacity 1 GB Flash Memory 512 MB Supported Memory Cards microSD Card Field of View (H x V) 25 x 19 Degrees Optical Sensor Type PS CMOS Sensor Size 1/1.8-Inch (14.1 mm) Total Pixels 6 Megapixels Minimum Illumination 0.001 lux - B&W - shutter 1 sec, 0.005 lux - color - shutter 1 sec, 0.02 lux - B&W - shutter 1/60 sec, 0.1 lux - color - shutter 1/60 sec Video Capture 1280 x 720 at 26 fps, 1280 x 720 at 42 fps Network Interface Ethernet 10Base-T/100Base-TX Network Protocols DHCP, FTP, FTPS, HTTP, HTTPS, IPv4, IPv6, NTP, RTP, RTSP, SIP, SMTP, SNMP, UDP/IP Ports LAN/Power - RJ-45, USB Cables Included 1 x Network Cable - External - 1.6 Feet Power Consumption Operational 9 Watts Low Voltage Power PoE Class 3 Operating Temperature Range -40 to 140 Degree Fahrenheit Dimensions W 6.2 x H 8.3 x D 8.1 Inches Weight 2.91 lbs.
