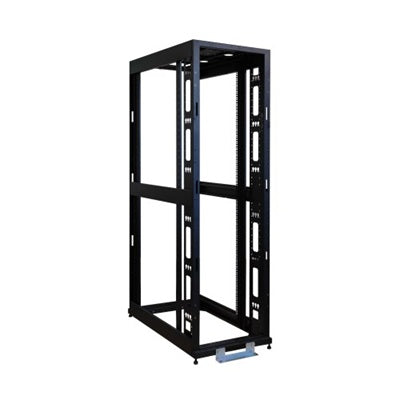

Eaton SR42UBDPEXP 42u Smartrack Locking Expansion Rack

Eaton SR42UBDPEXP 42u Smartrack Locking Expansion Rack - Black - Side Panels Not Included - Deep-depth A deeper version of the standard 42U SmartRack cabinet. This enclosure is 1143 millimeters deep (45 inches) compared to the standard 1050 millimeters. This extra depth allows for high-density equipment installations. It allows extra space for moving the cable management back, as well as providing space for mounted equipment that has hot-swap, removable power supplies out the back of the enclosure. The SR42UBDP houses 3,500 pounds (1588 kilograms) of standard 19-inch rack equipment in 42U. Its front and rear pairs of vertical rails have square mounting holes that are adjustable in quarter-inch increments from four to 42 inches. Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference. Two of the adjustable vertical mounting rails support toolless button-mount 0U installation of up to four compatible PDUs and cable managers. This feature makes it easier to route cabling to rack equipment and reduces cord clutter. With its locking, reversible, removable front and rear doors and locking, removable side panels, the SR42UBDP provides ultimate equipment safety. The side panels are half size for ease of removal and reinstallation. The split rear door design allows the enclosure to be placed closer to a wall. The SR42UBDP meets all requirements toward PCI DSS compliance. The top panel of the SR42UBDP is vented to help remove warm air from the enclosure and draw in cool air by convection. The top panel includes ports for cable routing and can be quickly removed without tools. To facilitate cable access, the SR42UBDP is open-bottom. All components of the SR42UBDP are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground. The removable front and rear doors feature quick-release ground wires. To simplify deployment, the SR42UBDP comes with preinstalled casters that enable it to be easily maneuvered into the desired location, where it can be secured by adjusting the preinstalled levelers. Note: The casters are intended for minor position adjustments and are not designed for moving the enclosure over long distances. Model Number SR42UBDPEXP Product Name Eaton SR42UBDPEXP 42u Smartrack Locking Expansion Rack Product Type Rack Cabinet Color Black Rack Type Enclosure Rack Height 42U Rack Depth Deep Factory Preset Rack Depth 71.4 cm / 714 mm Maximum Device Depth 106.68 cm / 1067 mm Minimum Device Depth 10.16 cm / 102 mm Weight Capacity (Rolling) 1021 kg Weight Capacity (Stationary) 1588 kg Vertical Mounting Rails 4 Grounding Details Front & Back door frames Built?in Cable Management Yes Pre?Installed Casters Yes Product Certifications UL 60950-1 Product Compliance RoHS, CE (Europe), UKCA Device Compatibility Patch Panel, Network Switch, UPS, Server Dimensions Height 78.5 x Width 23.6 x Depth 48.5 Inches Weight 315 lbs
