JBL AWC129-BK 12 Inches Single All-weather 2-way 400 Watts Passive

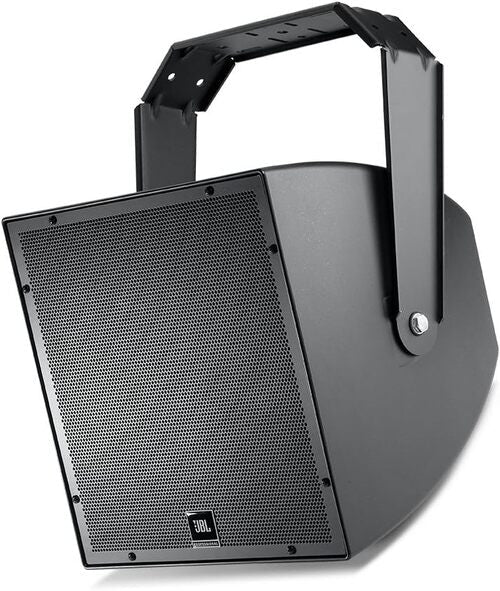

JBL AWC129-BK 12 Inches Single All-weather 2-way 400 Watts Passive Coaxial Surface Mount Speaker - Black - 55 Hertz - 20 Kilohertz - 8 Ohms The AWC129 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music in a wide variety of applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types. Model Number AWC129-BK Product Name JBL AWC129-BK 12 Inches Single All-weather 2-way 400 Watts Passive Coaxial Surface Mount Speaker Product Type Speaker Color Black Frequency Range (-10dB) 55 Hertz - 20 Kilohertz Frequency Response (3 dB) 80 Hertz - 20 Kilohertz Coverage Pattern 90 x 90 Degree Directivity Factor (Q) 10.1 (1 k - 16 Kilohertz) Directivity Index (DI) 9.5 dB (1k - 16 kHz) System Power Rating 400 Watts (1600 Watts Peak), 2 Hours. / 250 Watts (1000 Watts Peak), 100 Hours Sensitivity (2.83 Volts @ 1 Minute) 96 dB (Ave. 80 Hertz - 20 Kilohertz) Maximum SPL (1m) Direct 8 Ohms = 122 dB (Peaks of 128 dB) / 200 Watts Tap = 119 dB Crossover Network 1.5 Kilohertz, 3rd Order (18 dB/oct) High-pass Plus Conjugate to HF, 2nd Order Low-pass to LF Nominal Impedance 8 Ohms Transformer Taps 70 Volts = 200, 100, 50, 25 Watts ; 100 Volts = 200, 100, 50 Watts LF Driver Kevlar-reinforced Cone with Weather Treatment, 75 Millimeter (3 Inches) Voice Coil HF Driver 25 Millimeter (1 Inches) Diaphragm and Voice Coil Diameter, High Temperature Polymer Diaphragm, Patented Design, Fluid-cooling HF Driver Protection Minimum Audibility SonicGuard HF Overload Protection Enclosure ABS with Glass Enclosure, Heavily Braced Attachment Two M10 (Fine-thread) Points for Included U-bracket. M6 Secondary Safety Attachment Point on Back Panel Grille Corrosion-resistant Zinc-rich Extra-thick Powder Coated Steel Grille, 3-layer Assembly with Foam and Woven Poly Mesh Backing Input Connection CE-compliant Covered Barrier Strip Terminals. Accepts Up to 9 Millimeter Outside / 4 Millimeter Inside Open-lug (#6, #8 or #10) Plus Bare Wire Up to 2.5 Millimeter (12 AWG) or Spade Lugs. Terminal Compartment Cover with Gland Nut for Water-tight Seal (4.0 - 9.0 Millimeter Cable Diameters) Dimensions 15.8 x 15.8 x 17.5 Inches, Cabinet 18.5 Inches Depth with Gland Nut, 21.4 Inches Including Bracket Weight (Each) 35.0 lbs., 41.5 lbs. with U-bracket
