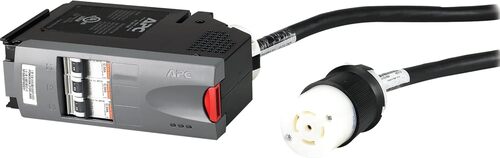

APC by Schneider Electric PDM3530L2130-920 Power Module

APC by Schneider Electric PDM3530L2130-920 Power Module - Black - 208 Volts AC - 30 Ampere - 1x NEMA L21-30R The easiest method to bring ultra-high efficiency and scalability to power distribution for demanding, business-critical applications. APC Power Distribution Modules simplify both the global deployment of a standard power distribution system and the expansion of existing APC Modular Power Distribution Unit solutions. A variety of breaker and connector options can be chosen to supply either three-phase or single-phase power to the load. Safety features of the Power Distribution Modules include a latch that disconnects the breaker from AC utility power and connectors with positive locking mechanisms. Built-in monitoring supplies information about the power consumption of connected devices. Model Number PDM3530L2130-920 Product Name APC by Schneider Electric PDM3530L2130-920 Power Module Product Type Power Module Color Black Main Input Voltage 208 Volts AC 3 phase Main Output Voltage 120 Volts AC Provided Equipment Installation guide Input Frequency 60 Hertz Permissible Voltage 200 - 240 Volts Max Line Current - Input 30 Ampere Max Current Draw - Output 30 Ampere Number of Power Socket Outlets 1x NEMA L21-30R Product Certifications UL Listed Environmental Compliance Restriction of Hazardous Substances (RoHS) Compatibility APC Symmetra PX 10kW-100kW UPS Systems Dimensions Height 5.00 x Width 17.52 x Depth 15.98 inches Product Weight 13.03 lbs.
