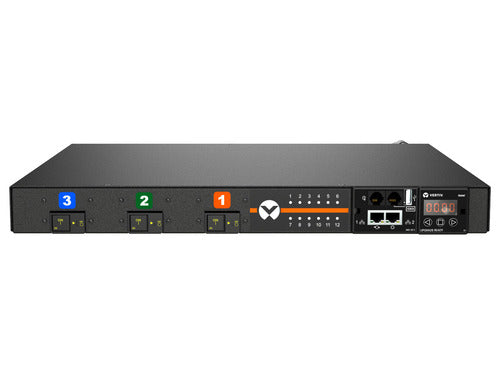

Vertiv NS30211 Geist rPDU Switched Unit Level Monitoring EC Power

Vertiv NS30211 Geist rPDU Switched Unit Level Monitoring EC Power Distribution Unit - 10 Kilowatt - 35 Amperes - 208 Volts - 10 Feet Power Cord - Circuit / Breaker Monitoring - LED Indicators - Digital Display - IP Reset Button - Hard Reboot Button Upgradeable Switched Unit Level Monitored EC rPDUs provide reliable power distribution to critical IT equipment while delivering individual outlet level control and a comprehensive view of input power usage via remote network access. Includes environmental monitoring capabilities to obtain realtime environmental metrics. Upgrade the hot-swappable monitoring device on select units to leverage new technologies and accommodate changing business needs. Model number NS30211 Product Name Vertiv NS30211 Geist rPDU Switched Unit Level Monitoring EC Power Distribution Unit Product Type PDU Color Black (Powder Coat) Monitoring Input power monitoring with Outlet switching. Circuit/Breaker current monitoring. Daisy chain Ethernet connectivity. Local high visibility LED display. Input Monitoring Total Unit Monitoring (kWh, W, VA, PF); Phase (AB, BC, CA) Monitoring (kWh, W, VA, PF, V, A); Line (A, B, C) Monitoring (A) Circuit Monitoring Circuit / Breaker Monitoring (A) Remote Power Management Individual Outlet Switching with Optional User Defined Time Delays and Sequential Power-up Quantity Of Inputs 1 Voltage 200 to 240V Delta Current 35 Amperes x 3 Phase DELTA VA per Input (Load Capacity) 10.0 Kilowatts (208V) Frequency 50/60 Hertz Over Current Protection (3) 20 Amperes Double Pole Magnetic Breakers (10kAIC Rated) Switch Breaker/Switch Combination Scrolling / Rotatable Digital Display Yes Indicators - LED(s) 12 Power Cable Wire Gauge 4-Aug Power Cable Length 10 Feet Power Entry Location Left Rear Plug Type California Style 50A, 250V, 3P/4W Twistlock Number of Receptacle/Socket on Rear 12 Quantity per Breaker and Phase Combination 4 Receptacle/Socket Circuit Color ID 3 Circuit = Orange, Green, Blue Receptacle/Socket Style Banks of 6 Voltage per Receptacle/Socket 208V Network Connection Dual 10/100/1000Mbps Ethernet Protocols Supported DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP Data Access Formats CSV Datalog, JSON API, JSON Datalog USB Support Yes IP Reset Button Yes Hard Reboot Button Yes Serial Connection RS232 via RJ45 Remote Sensor RJ Connection Jacks 1 (Supports up to 16 Sensors) Maximum Operating Temperature 60 Degrees Celsius Configuration 19 Inches Horizontal Rackmount Adjustable Mount Brackets Yes
