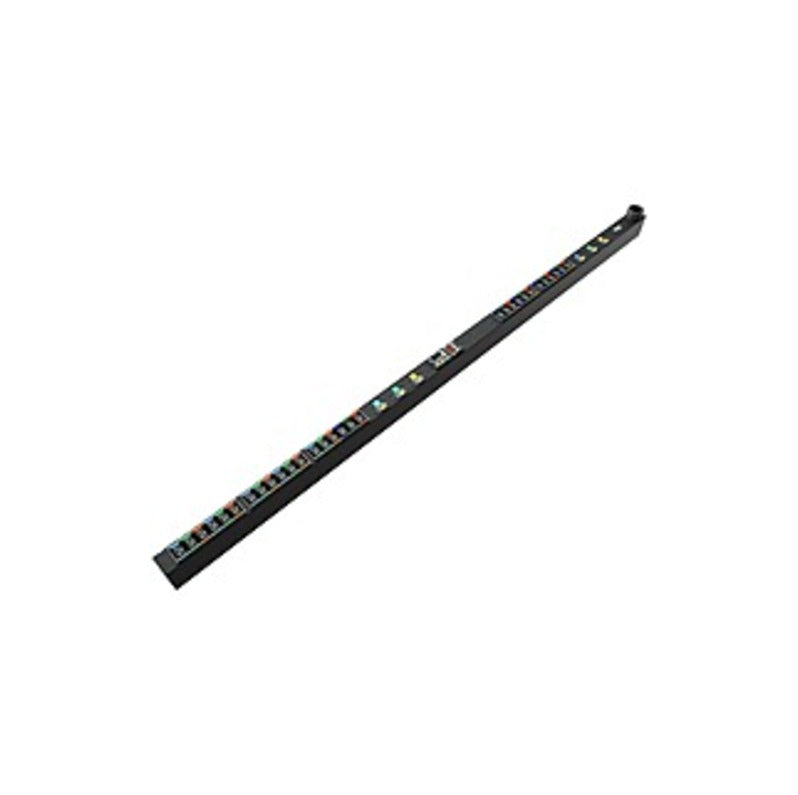

VERTIV N VP46301 PDU

Vertiv Geist Rack PDU - Combination Outlet| C13 / C19| 60A| 208V Delta (VP46301) - 30 Hybrid Outlets C13 / C19| For C14 and C20 plugs| 60A| 208V Delta| 17.2kW| 3P+E (IP44)| 0U Rack Power Distribution Unit The Vertiv Geist NI30677 rPDU is a versatile rack power distribution unit featuring 30 Combination C13/C19 Outlets. The NI30677 is a 60A, 208V three phase DELTA upgradeable rack PDU with a 3P+E (IP44) splash proof plug. The NI30677 provides unit level remote power monitoring and environmental monitoring capabilities. Remotely monitor and manage the rPDU through any web browser or via serial communication. The Combination C13/C19 Outlets accommodate C14 and C20 plugs interchangeably. The high retention outlets reduce the risk of costly downtime from accidental disconnections of the power cord and are also P-Lock compatible. The hot-swappable IMD provides peace of mind that as business needs change the technology can easily be updated. Model Number VP46301 Product Series N Product Name VERTIV N VP46301 PDU Product Type PDU PDU Type Monitored Phase Three Phase Plug/Connector Type 3P+E (IP44) Plug/Connector Detail 1 x 3P+E (IP44) Receptacle Type Combination C13/C19 Receptacle Detail 30 x Combination C13/C19 Protection Type Overcurrent Protection Input Voltage 208 V AC Input Voltage Range 200 V AC - 240 V AC Output Voltage 240 V AC Output Voltage Range 200 V AC - 240 V AC Power Rating (Watt) 17.20 kW Input Current 60 A Management DHCP HTTP HTTPS IPv4 IPv6 LDAP NTP RADIUS RSTP SSH SMTP SNMP (v1/v2c/v3) Syslog TACACS+ Remote Outlet Switching No Serial Port Yes Modem (RJ-11) No Modem (RJ-12) Yes Network (RJ-45) Yes USB Yes Color Black Mounting Orientation Vertical Mount Type Cabinet-mountable Rack Height 0U Number of Cord/Cable 1 Cord Length 10 ft Width 2.1" Depth 3" Length 70" Weight (Approximate) 32 lb Certifications & Standards UL & c-UL Listed 60950 FCC Part 15 Class A Conformance Energy Star No Environmentally Friendly Yes Environmental Certification China RoHS Country of Origin United States TAA Compliant Yes
