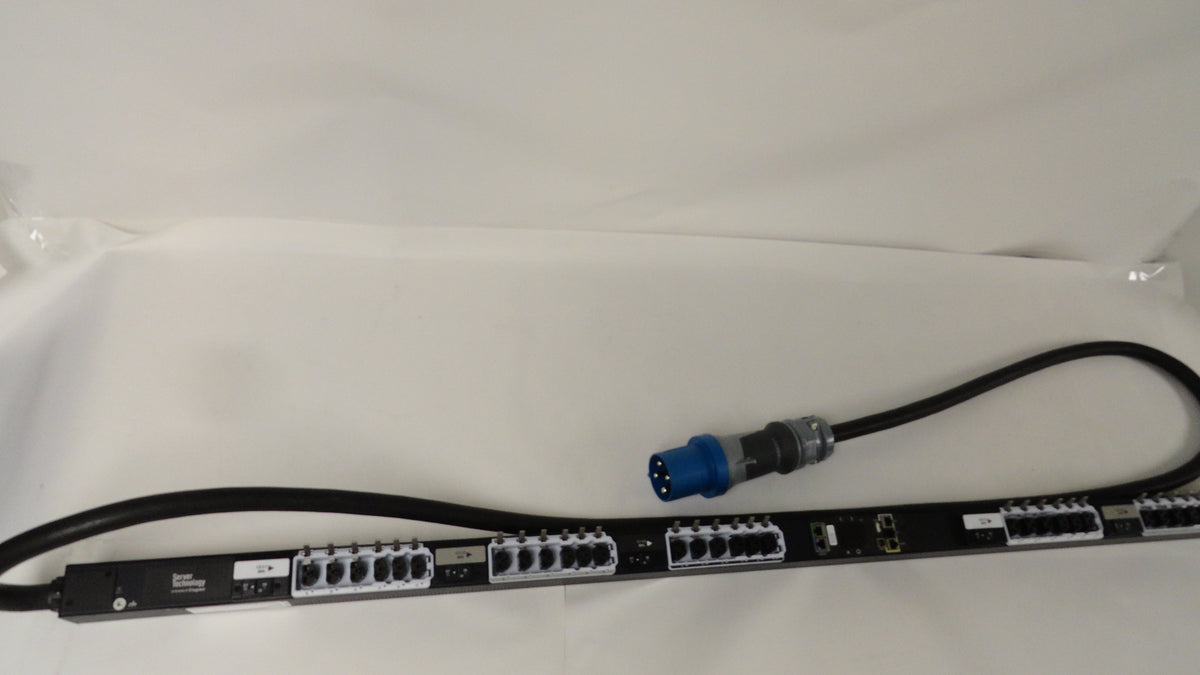

Server Technology PRO3X C3W36RL-DQJE2MT2 36 Outlets Power Distribution

Server Technology PRO3X C3W36RL-DQJE2MT2 36 Outlets Power Distribution Unit - Switched - IEC 60309 3P+G 9Hr 60 Amps - 18 x IEC 60320 C13, 18 x CX - 230 Volts AC - Branch Circuit, Circuit Protection, Fuse - Network (RJ-45) - 0U - Button Mount This all new Server Technology PRO3X Switched PDU features RamLock HDOT outlets running with the Xerus Technology Platform's state of the art network interface module. Server Technology's unique RamLock, a self-locking, elbow-catch mechanism to prevent accidental cord disconnects on standard network power cords. The PDU features HDOT outlets which are dedicated C13 outlets, while the other HDOT Cx outlets can be treated as either a C13 or C19 outlet. This innovative PDU combines input power and branch current monitoring, and outlet control and supports Legrand plug-and-play sensor types like temperature, humidity, water, dry contact closure, airflow, air pressure differential, and more. Model Number C3W36RLDQJE2MT2 Product Name Server Technology PRO3X C3W36RL-DQJE2MT2 36 Outlets Power Distribution Unit Product Type Power Distribution Unit PDU Type Switched Phase Three Phase Plug/Connector Type IEC 60309 3P+G 9Hr 60A Receptacle Type IEC 60320 C13, CX Receptacle Detail 18 x IEC 60320 C13, 18 x CX Protection Type Double Pole, Circuit Protection, Overload Protection Input Voltage 208 - 230 Volts AC Power Rating 17.3 kilowatts Input Current 60 Amps Communications & Security Dual Ethernet, Two (2) 10/100/1000 Mbps (Cat5e/6 connector), Optional WiFi (802.11 a/b/g/n), One (1) Sensor port (RJ45), One (1) Aux port (6P6C), One (1) Console/Modem port (RJ45), One (1) USB-A and One (1) USB-B, Web-browser GUI and command-line interface (CLI): HTTP/HTTPS, TLSv1.2, SSHv2, Telnet, SNMPv2c and v3 (GET, SET, Traps), IPv4 and IPv6, LDAPv3/LDAPS, TACACS+, RADIUS, FTP/SFTP Network (RJ-45) Yes Mount Type Rack-mountable Rack Height 0U Branch Circuit Protection UL489 Compliant 2-pole, 20A trip circuit breakers, six (6) branch, rating: [?] 16A, 10 kAIC Interrupt Rating Input Current Rated 48 Amps Quiescent / Unloaded Power Draw < 10 Watts for all configurations Certifications Safety (Listed & Certified, cTUVus mark), UL 62368-1, CSA C22.2 No. 62368-1, EMC, FCC Part 15 Subpart B Sections 15.107 & 15.109, Class A, CAN ICES-003, Class A Input Measurement Accuracy LED Current = +- 10% at 0.1 amp (0.5 - 9.9 amps) and 1 amp (> 9.9 amps) resolution, GUI Current = +- 1% at 0.01 amp resolution (above 0.5 amp), Voltage = +- 1% at 0.1 volt resolution (nominal +- 10%), Active Power = +- 1% at 1 watt resolution, Apparent Power = +- 1% at 1 volt-amp resolution, Power Factor = +- 3% at 0.01 resolution, Crest Factor = +- 10% at 0.1 resolution, Energy = +- 1% at 0.1 kilowatt-hour resolution Button Mounts Yes Emergency Power Off LCD display Dimensions Height 70 x Depth 2.5 x Width 2.2 Inches
