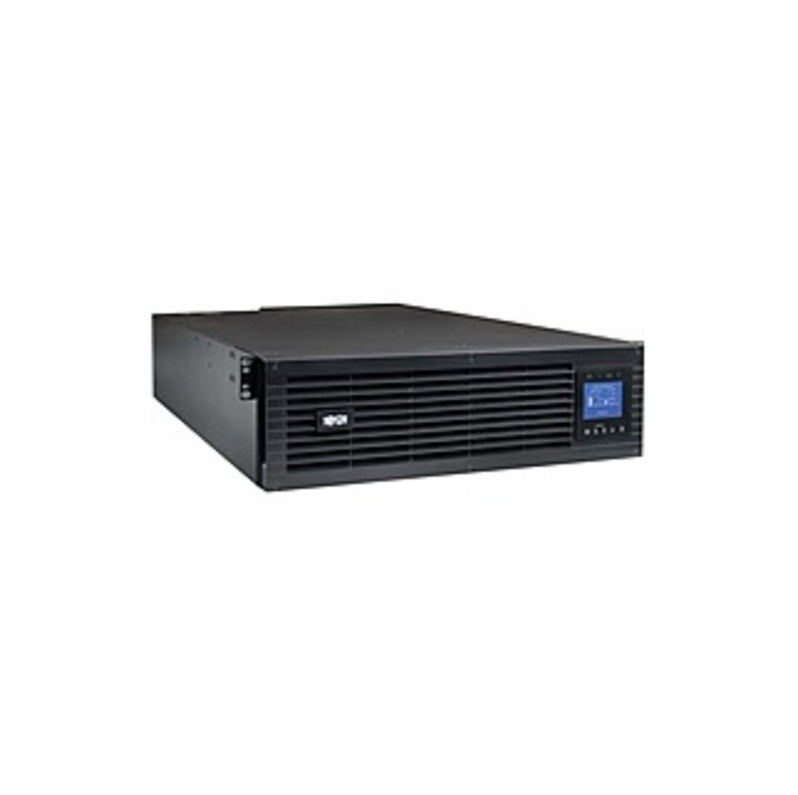

Tripp Lite SmartOnline SU5KRT3UHV Double Conversion Online UPS

Tripp Lite UPS Smart Online 5kVA 5kW 208/240V Unity Power Factor Hardwire/L6-30P 3URM - 3U Rack/Tower - 3 Hour Recharge - 5 Minute Stand-by - 230 V AC Input - 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC Output - 2 x NEMA L6-30R, 2 x NEMA L6-20R Protects Mission-Critical Rack-Mounted Equipment against Damage, Downtime and Data Loss Tripp Lite's SU5KRT3UHV Unity Power Factor UPS system protects connected equipment against damage, downtime and data loss due to power outages, voltage fluctuations and transient surges. Unity Power Factor design enables full 5000VA / 5000W output capacity when used with hardwire 208/240V input power (output de-rates to 4800W at 208V with included L6-30P cord option). In double-conversion mode, this UPS system maintains perfect output by continuously converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC with voltage regulation and zero transfer time between online and battery modes. Featuring true on-line, double-conversion operation, Tripp Lite's SmartOnline SU5KRT3UHV provides the highest level of UPS power protection for critical server, network and telecom equipment. Reliable, Expandable Battery Backup UPS battery backup keeps connected equipment operational through short power failures, and provides time to save data and perform an orderly system shutdown in case of a prolonged blackout. The internal battery set provides 14 minutes of support at half load and 5 minutes at full load. During normal operation, incoming utility power keeps the battery fully charged so backup power will be available when needed. Advanced temperature-controlled battery charge management system provides efficient recharge and enhanced battery lifespan. For mission-critical applications demanding continuous uptime, the 5kVA UPS can provide expandable runtime with optional BP192V12RT3US external battery pack (sold separately). Battery-independent restart ensures automatic UPS power-up after lengthy power outages, even with expired batteries. Economy Mode Helps the Environment and Your Cash Flow Operates with full-load efficiency in optional economy mode significantly reducing BTU heat output and operating energy costs. Intuitive Front-Panel Interface offers Convenient Monitoring Front-panel LEDs indicate line power, AC output, On-battery mode, and Fault conditions. The LCD readout with scroll controls supports visual monitoring of a variety of control options to support advanced UPS settings and configurations. The panel rotates for comfortable viewing in rack-mount or tower configuration. Pre-installed WEBCARDLXMINI Network Interface Offers 24/7 Access Pre-installed Java-free HTML5-based WEBCARDLXMINI interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Automated alerts help prevent accidental overloads, power loss and downtime. Advanced Communications Ports USB and DB9 ports with included cabling enable data-saving unattended shutdown of connected systems when used with Tripp Lite's free downloadable PowerAlert software. Capabilities include detailed monitoring of load levels, self-test data and utility power conditions. DB9 ports also support basic contact-closure monitoring to report On-battery and Low-battery status for legacy systems. Versatile Installation Options Model Number SU5KRT3UHV Product Line SmartOnline Product Name Tripp Lite SmartOnline SU5KRT3UHV Double Conversion Online UPS Product Type Double Conversion Online UPS Plug/Connector Type NEMA L6-30P Receptacle Type Hardwired Receptacle Detail 2 x NEMA L6-20R Overload Protection Yes Transfer Time 0 ns EMI/RFI Noise Filter Yes Phase Single Phase Application/Usage Computer Room Load Capacity 5000 VA/5000 W Input Voltage 230 V AC Output Voltage 240 V AC Input Frequency 60 Hz Output Frequency 60 Hz Waveform Type Pure Sine Wave Surge Energy Rating 1680 J Network Management SNMP/Telnet/SSH Alarm UPS Power Condition Status Indicators Front Panel LCD Display: Selectable LCD display With Escape Page Up Page Down Enter and Power buttons enable UPS control Detailed monitoring options; LED/LCD panel rotates for viewing in rack/tower formats (see manual) 4 front-panel LEDs: AC input AC output Battery mode Fault conditions Serial Port Yes EPO Port Yes USB (HID Compliant) Port Yes DC System Voltage 192 V DC Battery Characteristics Valve-regulated Battery Chemistry Lead Acid Backup/Run Time (Full Load) 5 Minute Backup/Run Time (Half Load) 14 Minute Typical Battery Recharge Time 3 Hour Hot Swappable Yes Replaceable Battery Yes Maximum Operating Temperature 104F (40C) Storage Temperature 5F (-15C) - 122F (50C) Maximum Operating Elevation 6562 ft Sound Emission 67 dB Thermal Dissipation 307.72 W Height 5.2" Width 17.5" Depth 30" Rack Height 3U Form Factor Rack/Tower Weight (Approximate) 117.51 lb Energy Star Yes Environmentally Friendly Yes Environmental Certification RoHS Country of Origin Taiwan TAA Compliant Yes
